Fire Archives - Kevin Ian Schmidt

Kevin Ian Schmidt

Category: Fire

  • Fire Prevention Plan – Overview

    Fire Prevention Plan – Overview

    The purpose of a Fire Prevention Plan is to eliminate the causes of fire, prevent loss of life and property by fire, and to comply with the Occupational Safety and Health Administration’s (OSHA) standard on fire prevention, 29 CFR 1910.39. It provides employees with information and guidelines that will assist them in recognizing, reporting, and controlling fire hazards.

    A quality Fire Prevention Plan describes the fuel sources (hazardous or other materials) on site that could initiate or contribute both to the spread of a fire, as well as the building systems, such as fixed fire extinguishing systems and alarm systems, in place to control the ignition or spread of a fire.



    OSHA Guidelines for a Fire Prevention Plan

    A fire prevention plan must be in writing, be kept in the workplace, and be made available to employees for review. However, an employer with 10 or fewer employees may communicate the plan orally to employees. [29 CFR 1910.39(b)]

    At a minimum, your fire prevention plan must include:

    • A list of all major fire hazards, proper handling and storage procedures for hazardous materials, potential ignition sources and their control, and the type of fire protection equipment necessary to control each major hazard. [29 CFR 1910.39(c)(1)]
    • Procedures to control accumulations of flammable and combustible waste materials. [29 CFR 1910.39(c)(2)]
    • Procedures for regular maintenance of safeguards installed on heat-producing equipment to prevent the accidental ignition of combustible materials. [29 CFR 1910.39(c)(3)]
    • The name or job title of employees responsible for maintaining equipment to prevent or control sources of ignition or fires. [29 CFR 1910.39(c)(4)]
    • The name or job title of employees responsible for the control of fuel source hazards. [29 CFR 1910.39(c)(5)]
    • An employer must inform employees upon initial assignment to a job of the fire hazards to which they are exposed. An employer must also review with each employee those parts of the fire prevention plan necessary for self-protection. [29 CFR 1910.39(d)]
    Learn how to conduct a Fire Risk Assessment to best formulate your Fire Prevention Plan

    A Fire Prevention Plan serves to reduce the risk of fires at your workplace in the following ways:

    1. The Fire Prevention Plan identifies materials that are potential fire hazards and their proper handling and storage procedures.
    2. It distinguishes potential ignition sources and the proper control procedures of those materials.
    3. The plan describes fire protection equipment and/or systems used to control fire hazards.
    4. It identifies persons responsible for maintaining the equipment and systems installed to prevent or control ignition of fires.
    5. The Fire Prevention Plan identifies persons responsible for the control and accumulation of flammable or combustible material.
    6. It describes good housekeeping procedures necessary to insure the control of accumulated flammable and combustible waste material and residues to avoid a fire emergency.
    7. The plan provides training to employees with regard to fire hazards to which they may be exposed.



  • Fire Risk Assessment

    Fire Risk Assessment

    Prior to fighting any fire with a portable fire extinguisher you must perform a fire risk assessment that evaluates the fire size, the fire fighters evacuation path, and the atmosphere in the vicinity of the fire.

    Check Out: Fire Extinguisher Basics
    Risk Assessment Question Characteristics of incipient stage fires or fires that can be extinguished with portable fire extinguishers Characteristics of fires that

    SHOULD NOT be fought with a portable fire extinguisher (beyond incipient stage) – evacuate immediately

    Is the fire too big? The fire is limited to the original material ignited, it is contained (such as in a waste basket) and has not spread to other materials. The flames are no higher than the firefighter’s head. The fire involves flammable solvents, has spread over more than 60 square feet, is partially hidden behind a wall or ceiling, or cannot be reached from a standing position.
    Is the air safe to breathe? The fire has not depleted the oxygen in the room and is producing only small quantities of toxic gases. No respiratory protection equipment is required. Due to smoke and products of combustion, the fire cannot be fought without respiratory protection.
    Is the environment too hot or smoky? Heat is being generated, but the room temperature is only slightly increased. Smoke may be accumulating on the

    ceiling, but visibility is good. No special personal protective equipment is required.

    		 The radiated heat is easily felt on exposed skin making it difficult to approach within 10-15 feet of the fire (or the effective range of the extinguisher). One must crawl on the floor due to heat or smoke. Smoke is quickly filling the room, decreasing visibility.
    Is there a safe evacuation path? There is a clear evacuation path that is behind you as you fight the fire. The fire is not contained, and fire, heat, or smoke may block the evacuation path.
  • OSHA Fire Extinguisher Guidelines

    OSHA Fire Extinguisher Guidelines

    Where extinguishers are provided but are not intended for employee use and the employer has an emergency action plan and a fire prevention plan that meet the requirements of [29 CFR 1910.38], then only the requirements of the inspection, maintenance and testing and hydrostatic testing sections apply. [29 CFR 1910.157(a)]



    As the owner of the business, you must:

    • Provide portable fire extinguishers and mount, locate, and identify them so that they are readily accessible to employees without subjecting the employees to possible injury. [29 CFR 1910.157(c)(1)]  Fire Extinguisher Placement
    • Use only approved portable fire extinguishers. [29 CFR 1910.157(c)(2)]  Type of fire extinguishers
    • Do not use portable fire extinguishers that use carbon tetrachloride or chlorobromomethane extinguishing agents. [29 CFR 1910.157(c)(3)]
    • Assure that portable fire extinguishers are maintained, fully charged, operating properly, and kept in designated places at all times except during use. [29 CFR 1910.157(c)(4)]  How to inspect a fire extinguisher
    • Remove from service all soldered or riveted shell self-generating soda acid or self-generating foam or gas cartridge water type portable fire extinguishers that are operated by inverting the extinguisher to rupture the cartridge or to initiate an uncontrollable pressure generating chemical reaction to expel the agent. [29 CFR 1910.157(c)(5)]
    Check Out: Fire Extinguisher Inspections

    The following exemptions apply:

    • Where the employer has established and implemented a written fire safety policy which requires the immediate and total evacuation of employees from the workplace upon the sounding of a fire alarm signal and which includes an emergency action plan and a fire prevention plan that meet the requirements of 29 CFR 1910.38 and 29 CFR 1910.39 respectively, and when extinguishers are not available in the workplace, the employer is exempt from all requirements of this section unless a specific standard in Part 1910 requires that a portable fire extinguisher be provided. [29 CFR 1910.157(b)(1)]
    • Where the employer has an emergency action plan meeting the requirements of 29 CFR 1910.38, which designates certain employees to be the only employees authorized to use the available portable fire extinguishers, and which requires all other employees in the fire area to immediately evacuate the affected work area upon the sounding of the fire alarm, the employer is exempt from the distribution requirements in the selection and distribution section. [29 CFR 1910.157(b)(2)]



    Learn more about fire extinguisher selection and placement

    An employer must:

    • Provide portable fire extinguishers for employee use. Select and distribute the extinguishers based on the types of anticipated workplace fires and on the size and degree of hazard that would affect their use. [29 CFR 1910.157(d)(1)]
    • fire-extinguisher-signageDistribute portable extinguishers for use on Class A fires so that the travel distance for employees to any extinguisher is 75 feet (22.9 meters) or less. [29 CFR 1910.157(d)(2)]
    • Use uniformly spaced standpipe systems or hose stations connected to a sprinkler system installed for emergency use by employees, instead of Class A portable fire extinguishers, provided that such systems meet the respective requirements of 29 CFR 1910.158 or 29 CFR 1910.159, that they provide total coverage of the area to be protected, and that employees are trained at least annually in their use. [29 CFR 1910.157(d)(3)]
    • Distribute portable fire extinguishers for use on Class B fires so that the travel distance for employees to any extinguisher is 50 feet (15.2 meters) or less. [29 CFR 1910.157(d)(4)]
    • Distribute portable fire extinguishers for use on Class C hazards on the appropriate pattern for the existing Class A or Class B hazards. [29 CFR 1910.157(d)(5)]
    • Distribute portable fire extinguishers or other containers of Class D extinguishing agent for employee use so that the travel distance from the combustible metal working area to any  extinguisher is 75 feet (22.9 meters) or less. Portable fire extinguishers for Class D hazards are required in areas where combustible metal powders, flakes, shavings, or similarly sized products are generated at least once every two weeks. [29 CFR 1910.157(d)(6)]







    As a small business owner, you MUST:

    • fire-extinguisher-signInspect, maintain, and test all portable fire extinguishers in the workplace. [29 CFR 1910.157(e)(1)]
    • Visually inspect portable extinguishers or hoses monthly. [29 CFR 1910.157(e)(2)]
    • Perform an annual maintenance check on portable fire extinguishers. Stored pressure extinguishers do not require an internal examination. Record the annual maintenance date and retain this record for one year after the last entry or the life of the shell, whichever is less. Make the record available to the Assistant Secretary upon request. [29 CFR 1910.157(e)(3)]
    • Empty and maintain dry chemical extinguishers (that require a 12-year hydrostatic test) every six years. Dry chemical extinguishers that have non-refillable disposable containers are exempt from this requirement. When recharging or hydrostatic testing is performed, the six-year requirement begins from that date. [29 CFR 1910.157(e)(4)]
    • Provide alternate equivalent protection when portable fire extinguishers are removed from service for maintenance and recharging. [29 CFR 1910.157(e)(5)]



    A small business must:

    • Assure that hydrostatic testing is performed by trained persons with suitable testing equipment and facilities. [29 CFR 1910.157(f)(1)]
    • Assure that portable extinguishers are hydrostatically tested at the intervals listed in Table L-1 of this section, except under any of the following conditions [29 CFR 1910.157(f)(2)]:
    • Assure that an internal examination of cylinders and shells to be tested is made before the hydrostatic tests in addition to an external visual examination. [29 CFR 1910.157(f)(3)]
    Table L-1
    Type of extinguishers Test interval (years)
    Soda acid (soldered brass shells) (until 1/1/82) *
    * Soda acid (stainless steel shell) 5
    * Cartridge operated water and/or antifreeze 5
    Stored pressure water and/or antifreeze 5
    Wetting agent 5
    Foam (soldered brass shells) (until 1/1/82) *
    Foam (stainless steel shell) 5
    Aqueous Film Forming foam (AFFF) 5
    Loaded stream 5
    Dry chemical with stainless steel 5
    Carbon Dioxide 5
    Dry chemical, stored pressure, with mild steel, brazed brass or aluminum shells 12
    Dry chemical, cartridge or cylinder operated, with mild steel shells 12
    Halon 1211 12
    Halon 1301 12
    Dry powder, cartridge or cylinder operated with mild steel shells 12
    FOOTNOTE: Extinguishers having shells constructed of copper or brass joined by soft solder or rivets shall not be hydrostatically tested and shall be removed from service by January 1, 1982. (Not permitted)

    * Although still included in Table L-1, Soda acid (stainless steel shell) and Cartridge operated water and/or antifreeze extinguishers are now obsolete. [29 CFR 1910.157]
    • Assure that portable fire extinguishers are hydrostatically tested whenever they show new evidence of corrosion or mechanical injury, except under the conditions listed in paragraphs (f)(2)(i)–(v) of this section. [29 CFR 1910.157(f)(4)]
    • Assure that hydrostatic tests are performed on extinguisher hose assemblies that are equipped with a shut-off nozzle at the discharge end of the hose. The test interval must be the same as specified for the extinguisher. [29 CFR 1910.157(f)(5)]
    • Hydrostatically test carbon dioxide hose assemblies with a shut-off nozzle at 1,250 psi (8,620 kPa). [29 CFR 1910.157(f)(6)]
    • Hydrostatically test dry chemical and dry powder hose assemblies with a shut-off nozzle at 300 psi (2,070 kPa). [29 CFR 1910.157(f)(7)] Hose assemblies passing a hydrostatic test do not require any type of recording or stamping. [29 CFR 1910.157(f)(8)]
    • Test hose assemblies for carbon dioxide extinguishers within a protective cage device. [29 CFR 1910.157(f)(9)]
    • Test carbon dioxide extinguishers and nitrogen or carbon dioxide cylinders used with wheeled extinguishers every five years at 5/3 of the service pressure as stamped into the cylinder. Nitrogen cylinders that comply with 49 CFR 173.34(e)(15) may be hydrostatically tested every 10 years. [29 CFR 1910.157(f)(10)]
    • Hydrostatically test stored pressure and Halon 1211 types of extinguishers at the factory test pressure, not to exceed two times the service pressure. [29 CFR 1910.157(f)(11)]
    • Test self-generating type soda acid and foam extinguishers at 350 psi (2,410 kPa). [29 CFR 1910.157(f)(12)]
    • Do not use air or gas pressure for hydrostatic testing. [29 CFR 1910.157(f)(13)]
    • Remove from service extinguisher shells, cylinders, or cartridges that fail a hydrostatic pressure test, or that are not fit for testing. [29 CFR 1910.157(f)(14)]
    • Ensure that the equipment for testing compressed gas type cylinders be of the water jacket type. The equipment must have an expansion indicator that operates with an accuracy within 1 percent of the total expansion or .1cc (.1mL) of liquid. [29 CFR 1910.157(f)(15)(i)]
    • Ensure that the equipment for testing non-compressed gas type cylinders includes the following [29 CFR 1910.157(f)(15)(ii)]:
      • A hydrostatic test pump, hand or power operated, capable of producing at least 150 percent of the test pressure, which must include appropriate check valves and fittings. [29 CFR 1910.157(f)(15)(ii)(A)]
      • A flexible connection for attachment to fittings to test through the extinguisher nozzle, test bonnet, or hose outlet, as is applicable. [29 CFR 1910.157(f)(15)(ii)(B)]
      • A protective cage or barrier for personal protection of the tester, designed to provide visual observation of the extinguisher under test. [29 CFR 1910.157(f)(15)(ii)(C)]
    • Maintain and provide upon request to the Assistant Secretary evidence that the required hydrostatic testing of fire extinguishers has been performed at the time intervals shown in Table L-1. Such evidence must be in the form of a certification record that includes:
      • The date of the test.
      • The signature of the person who performed the test.
      • The serial number, or other identifier, of the fire extinguisher that was tested.

    Such records must be kept until the extinguisher is hydrostatically retested at the time interval specified in Table L-1 or until the extinguisher is taken out of service, whichever comes first. [29 CFR 1910.157(f)(16)]



    For the employees of your business, you must:

    • Provide an educational program to familiarize employees with the general principles of fire extinguisher use and the hazards involved with incipient stage fire fighting. [29 CFR 1910.157(g)(1)] Provide this education when employees are first hired and once a year thereafter. [29 CFR 1910.157(g)(2)]
    • Train employees (who have been designated to use fire fighting equipment in the emergency action plan) in the use of the equipment. [29 CFR 1910.157(g)(3)] Provide this training when employees are first given this assignment and once a year thereafter. [29 CFR 1910.157(g)(4)]
  • Fire Extinguisher Inspections

    Fire Extinguisher Inspections

    Regular maintenance and inspections of your portable fire extinguishers will provide assurance that they will operate effectively and safely if they are needed. [29 CFR 1910.157(c)(4)]

    fire-extinguisher-properInspect all extinguishers at least once a month. Use the following checklist as a guide.

    1. Is each extinguisher in its designated place, clearly visible, and not blocked by equipment, coats or other objects that could interfere with access during an emergency?
    2. Is the nameplate with operating instructions legible and facing outward?
    3. Is the pressure gauge showing that the extinguisher is fully charged (the needle should be in the green zone)?
    4. Is the pin and tamper seal intact?
    5. Is the extinguisher in good condition and showing no signs of physical damage, corrosion, or leakage?
    6. Have all dry powder extinguishers been gently rocked top to bottom to make sure the powder is not packing?



    NOTE: If you did not answer yes to all of these questions, have the extinguisher fixed or replaced immediately!

    If you want to learn more about Fire Extinguishers, check out OSHA’s full guidelines on fire extinguishers.

    The following photos are of fire extinguishers out of compliance, do you have any in your workplace like the following?

    Missing seal
    Missing seal
    This fire extinguisher is in violation by sitting on the ground.
    This fire extinguisher is in violation by sitting on the ground.
    Can you identify what is wrong here?
    Can you identify what is wrong here?
  • Fire Extinguishers: Placement and Selection

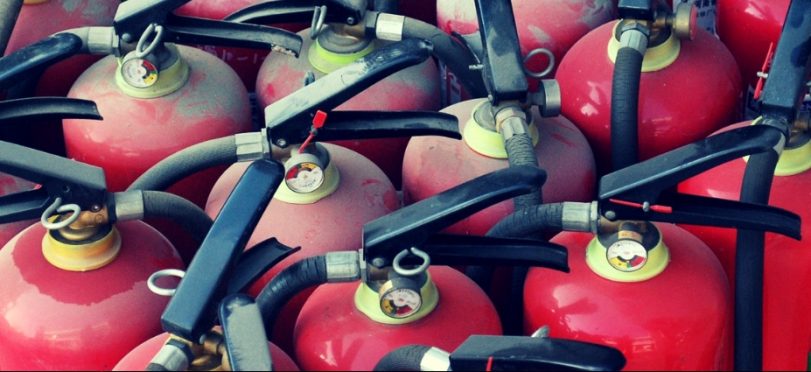

    Fire Extinguishers: Placement and Selection

    To avoid putting workers in danger, fire extinguishers should be located throughout the workplace and readily accessible in the event of a fire. [29 CFR 1910.157(c)] You can usually find them in hallways, laundry rooms, meeting rooms, kitchens, mechanical/electrical rooms, and near exit doors.

    Selection and Placement of Fire Extinguishers

    If employees use portable fire extinguishers, they must be selected and positioned based on the potential type and size of fire that can occur. [29 CFR 1910.157(d)(1)] The following guidelines will help you identify the number and types of portable fire extinguishers you should have.

    Type of Fire

    Size and Spacing
    Class A The National Fire Protection Association (NFPA) recommends that locations such as offices, classrooms, and assembly halls that contain mainly Class A combustible materials have one 2-A extinguisher for every 3,000 square feet. [Standard for Portable Fire Extinguishers (NFPA 10 (2010), Table 6.2.1.1, Fire Extinguisher Size and Placement for Class A Hazards)].

    OSHA requires that all employees have access to an extinguisher within 75 feet travel-distance. [29 CFR 1910.157(d)(2)]

    NOTE: Uniformly spaced standpipe systems or hose stations connected to a sprinkler system for emergency use can be used instead of Class A portable fire extinguishers, if they meet the respective requirements of 29 CFR 1910.158 or 29 CFR 1910.159, provide total coverage of the area to be protected, and employees are trained at least annually in their use. [29 CFR 1910.157(d)(3)]
    Class B Locations that contain Class B flammables, such as workshops, storage areas, research operations, garages, warehouses, or service and manufacturing areas requires that all employees have access to an extinguisher within 50 feet travel-distance. [29 CFR 1910.157(d)(4)]

    Hazard

    Extinguisher

    Spacing
    Light (Low) – Small amounts of flammable liquids used for copy machines, art departments, etc., that are stored safely and kept in closed containers.

    5-B

    30′

    10-B

    50′
    Ordinary (Moderate) – The total amount of flammable liquids are present in greater amounts than expected under low-hazard locations. This can include garages, workshops, or support service areas.

    10-B

    30′

    20-B

    50′
    Extra (High) – Locations where flammable liquids are present and used in large quantities. This includes areas used for storage, production, woodworking (finishing), vehicle repair, aircraft and boat servicing, or where painting, dipping, and coating, operations are performed with flammable liquids.

    40-B

    30′

    80-B

    50′
    (Adapted from Standard for Portable Fire Extinguishers, NFPA 10 (2010), Table 6.3.1.1, Fire Extinguisher Size and Placement for Class B Hazards)
    Class C Class C extinguishers are required where energized electrical equipment is used. The extinguisher size and spacing is based on its Class A or B hazard. [29 CFR 1910.157(d)(5)]
    Class D Locations where combustible metal powders, flakes, shavings, or similarly sized materials are generated at least once every two weeks must install Class D portable fire extinguishers not more then 75 feet from the hazard. [29 CFR 1910.157(d)(6)]
    Class K Locations where potential fire hazards from combustible cooking media (vegetable or animal oils and fats) exist must install Class K extinguishers at a maximum travel distance of 30 feet. [NFPA 10, Standard for Portable Fire Extinguishers. See Section 6.6, Installations for Class K Hazards]

    Installation of Fire Extinguishers:

    Up to 5' Bracket, 3.5'To prevent fire extinguishers from being moved or damaged, they should be mounted on brackets or in wall cabinets with the carrying handle placed 3-1/2 to 5 feet above the floor. Larger fire extinguishers need to be mounted at lower heights with the carrying handle about 3 feet from the floor.

    Before installing any portable fire extinguisher, check the label to be sure it is approved by a nationally recognized testing laboratory. [29 CFR 1910.157(c)(2)]

    Read more about OSHA’s Fire Extinguisher Guidelines

    Prohibited Fire Extinguishers:

    The following types of portable fire extinguishers are considered dangerous and should NEVER be used:

    Old Extinguisher having a shell construction of copper or brass

    1. Any extinguisher having a shell construction of copper or brass joined by soft solder and/or rivets.
    2. Any extinguisher that must be turned upside down to rupture a cartridge or to start an uncontrollable pressure generating chemical reaction to expel the agent. [29 CFR 1910.157(c)(5)] This includes:
      • Soda acid
      • Foam
      • Water-cartridge
      • Loaded stream cartridge
    3. Extinguishers that use chlorobromomethane (Halon 1011) or carbon tetrachloride as an extinguishing agent. These agents are toxic and carbon tetrachloride may cause cancer and can produce phosgene gas (used as a chemical weapon during World War I) when used on electrical fires. [29 CFR 1910.157(c)(3)]
